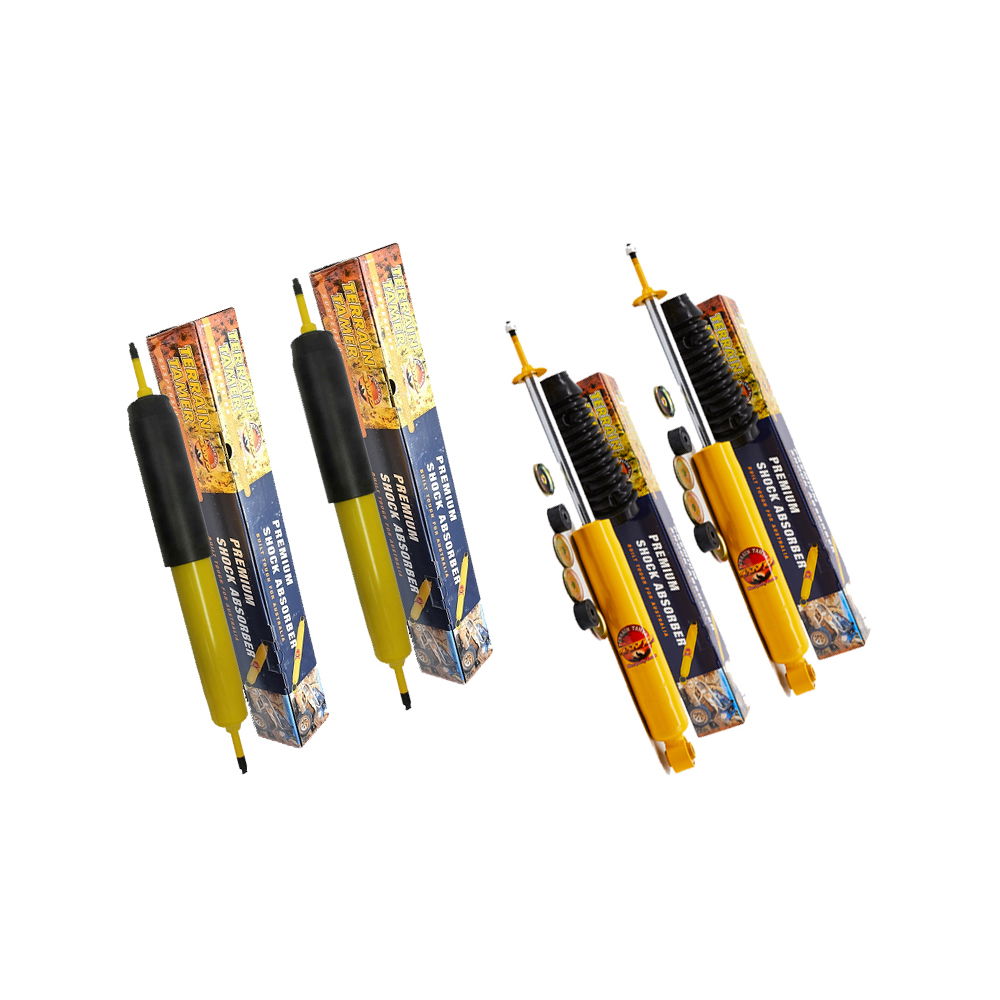

Terrain Tamer TGS Series Expanded Body shock absorbers and struts offer a performance alternative above many standard and slimline-body shock absorbers.
Vehicle model: Toyota Land Cruiser 105 Series FZJ105 HZJ105 1998-07
Front Length (open – closed): 615mm – 365mm
Rear Length (open – closed): 615mm – 372mm
Compatible Lift: Suits up to 50mm lifts
Notes: Supplied with bushes
When Terrain Tamer wanted to offer a premium twin-tube alternative to their award-winning G Series Slimline shock absorber range, the only option was to develop a product with increased internal chamber diameter and a larger piston rod. Having larger body dimensions allows for increased oil and gas capacity, which provides better cooling and reduces shock fade. Terrain Tamer TGS Expanded Body shocks and struts are designed for off-road durability and on-road comfort.
The TGS Series Expanded Body design incorporates a 20% increase in body diameter and a 25% larger diameter hardened piston shaft when compared to the G Series. This makes it a leading choice for off-road and heavy duty applications. With double-welded eyelets and high-quality Nitrile seals, these shock absorbers are built tough for a long life.
- 40mm bore diameter
- 20mm chrome hardened shaft
- 60mm outer body
- Twin Tube design
- Double welded eyelets
- Multi stage valving system
- German manufactured Nitrile seal
- For vehicles up to 2 inch (50mm) lift
- 3 year / 100,000km warranty (private use)
- Suitable for heavy duty applications
“How are Terrain Tamer TGS shocks better than the OEM original parts?”
Terrain Tamer TGS shocks have a number for improvements compared to many stock shock absorbers and dampers. Increased gas and oil capacity means improved cooling, better durability and longer life. Many TGS shocks have thicker chamber walls, larger diameter pistons, uprated bushes and improved internal valving and seals.
“Will this product fit straight onto my vehicle?”
Yes, this is designed to be a direct replacement for your stock parts.
“Do you have options from Terrain Tamer for lift heights of more than 50mm?”
No, Terrain Tamer only offer one shock absorber length per vehicle model.
“Can you supply other compatible parts such as springs?”
Yes, we can supply the entire Terrain Tamer range. Ask for details if you don’t see the parts you need on our website.
“Is the Terrain Tamer brand well known worldwide?”
Yes, Terrain Tamer have been supplying high quality parts for remote area travel and overland use, for more than 50 years. Their parts are highly regarded around the world and are sold in more than 100 countries.
All information and photos are for general guidance only and the parts you receive may vary depending on your specific application. Whilst we go to every effort to show the correct part in the photos, this is not always possible.
